Key Stage 4
Meaning
A half life is the time it takes for half of the unstable isotopes in a radioactive sample to decay.
About Half Life
- Every isotope has a unique half life.
- The half life of an isotope depends on how stable the isotope is.
- The half life of an isotope can be determined by measuring the emission of ionising radiation. The time it takes for the count rate of ionising radiation to halve, is the same as its half life.

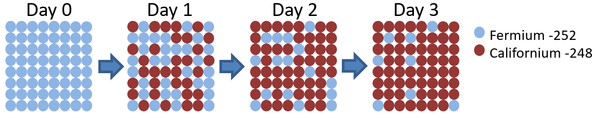

This diagram shows the number of Fermium-252 atoms halves each day, so the half life is 1 day. |
- The half life of an isotope can be found from plotting a graph of the amount or isotope or the count rate against the time. The half life is the time these take to halve from their initial value.
- The count rate of a sample of unstable isotope can be predicted given its initial count rate, its half life and the time it has been given.
Finding Half Life from a Graph

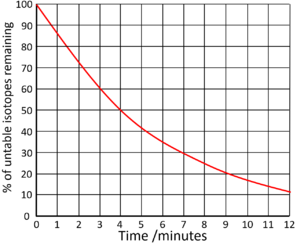

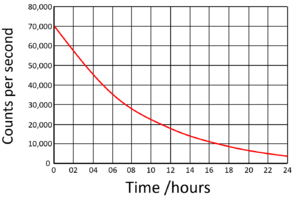

Find the half life from this graph. | Find the half life from this graph. |

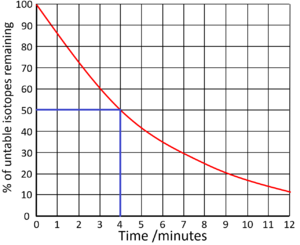

There is 100% of the isotope at the beginning. Draw a horizontal line from 50% to the curve. Draw a vertical line down from the curve to indicate the half life.
Half Life = 4 minutes |

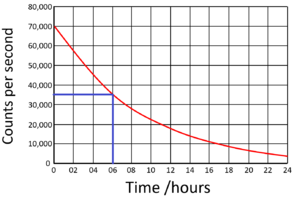

The count rate began at 70,000Bq. Draw a horizontal line from 35,000 (half the initial count rate) to the curve. Draw a vertical line down from the curve to indicate the half life.
Half Life = 6 hours |
Calculating Half Life
An isotope had a count rate of 200Bq and 90 days later has a count rate of 25. Calculate the half life of this isotope. | A radioactive sample begins with 224 atoms of an unstable isotope 18 minutes later there are only 14 atoms of the unstable isotope left. Calculate the half life of this isotope. |
1. Identify how many times the count rate has halved.
\(200 \div 2 = 100\) \(100 \div 2 = 50\) \(50 \div 2 = 25\) The count rate has halved 3 times. |
1. Identify how many times the number of unstable atoms has halved.
\(224 \div 2 = 112\) \(112 \div 2 = 56\) \(56 \div 2 = 28\) \(56 \div 2 = 28\) |
2. Divide the time taken by the number of times the count rate has halved.
<math>90 \div 3 = 30<math> Half Life = 30 days. |
2. Divide the time taken by the number of times the number of unstable atoms has halved.
<math>18 \div 4 = 4.5<math> Half Life = 4.5 minutes |
Finding Half Life and Count Rate from a Table
Time /s | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
Count rate /Bq | 1000 | 707 | 500 | 353 | 250 | 176 | 125 | 88 | 62 |
1. Find the half life of this sample of radioactive isotope.
- The half life of of this sample of radioactive isotope can be found by halving the initial count rate.
- 1000/2 = 500Bq
- The isotope took 20 seconds to half in count rate:
- Half life = 20 seconds.
2. Predict the count rate at 90 seconds.
- Since the half life is 20 seconds the count rate 20 seconds earlier can be halved. :At 70 seconds the count rate was 88Bq. Therefore at 90 seconds the count rate would be:
- 88/2 = 44Bq
3. Predict what the count rate was 10 seconds before the sample was first tested.
- Since the half life is 20 seconds the count rate 20 seconds later can be doubled. :At 10 seconds the count rate was 707Bq. Therefore at -10 seconds the count rate would have been:
- 707x2= 1414Bq
Time /min | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Count rate /Bq | 5000 | 3968 | 3150 | 2500 | 1984 | 1575 | 1250 | 992 | 788 |
1. Find the half life of this sample of radioactive isotope.
- The half life of of this sample of radioactive isotope can be found by halving the initial count rate.
- 5000/2 = 2500Bq
- The isotope took 3 minutes to half in count rate:
- Half life = 3 minutes.
2. Predict the count rate at 9 minutes.
- Since the half life is 3 minutes the count rate 3 minutes earlier can be halved.
- At 6 minutes the count rate was 1250Bq. Therefore at 9 minutes the count rate would be:
- 1250/2 = 625Bq
3. Predict what the count rate was 2 minutes before the sample was first tested.
- Since the half life is 3 minutes the count rate 3 minutes later can be doubled.
- At 1 minute the count rate was 3968Bq. Therefore at -2 minutes the count rate would have been:
- 3968x2= 7936Bq
