Meaning
A light dependent resistor (LDR) is a resistor which changes resistance depending on the intensity of light that it is exposed to.
About Light Dependent Resistors
- Light dependent resistors decrease resistance as the intensity of light increases.
- A light dependent resistor can be used to control the current passing through a circuit. If the potential difference is constant then the current decreases as the light intensity decreases.
- A light dependent resistor can be used to control the potential difference of another component in series with it. If the light intensity on the light dependent resistor is decreased then the potential difference across other components will decrease.
- Light dependent resistors can be used in security lights and street lamps which activate depending on how dark it is.
IV Graph
 |
 |
| In this circuit diagram the light intensity is low, which causes the resistance of the LDR to be high. As a result the potential difference across the lamp will be high (5.9V) and the current through the lamp will be large. So in dim light the lamp will remain lit. | In this circuit diagram the light intensity is high, which causes the resistance of the LDR to be low. As a result the potential difference across the lamp will be low (0.1V) and the current through the lamp will be low. So in bright light the lamp will remain unlit. |
IV Graph
 |
Description

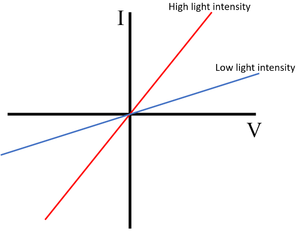

The IV Graph for a light dependent resistor shows that:
- At a high light intensity the current increases rapidly with the potential difference
- At a low light intensity the current increases slowly with the potential difference.
Explanation
- The resistance of an LDR increases as the light intensity decreases.
